HOTAS Cougar Circuit Diagrams

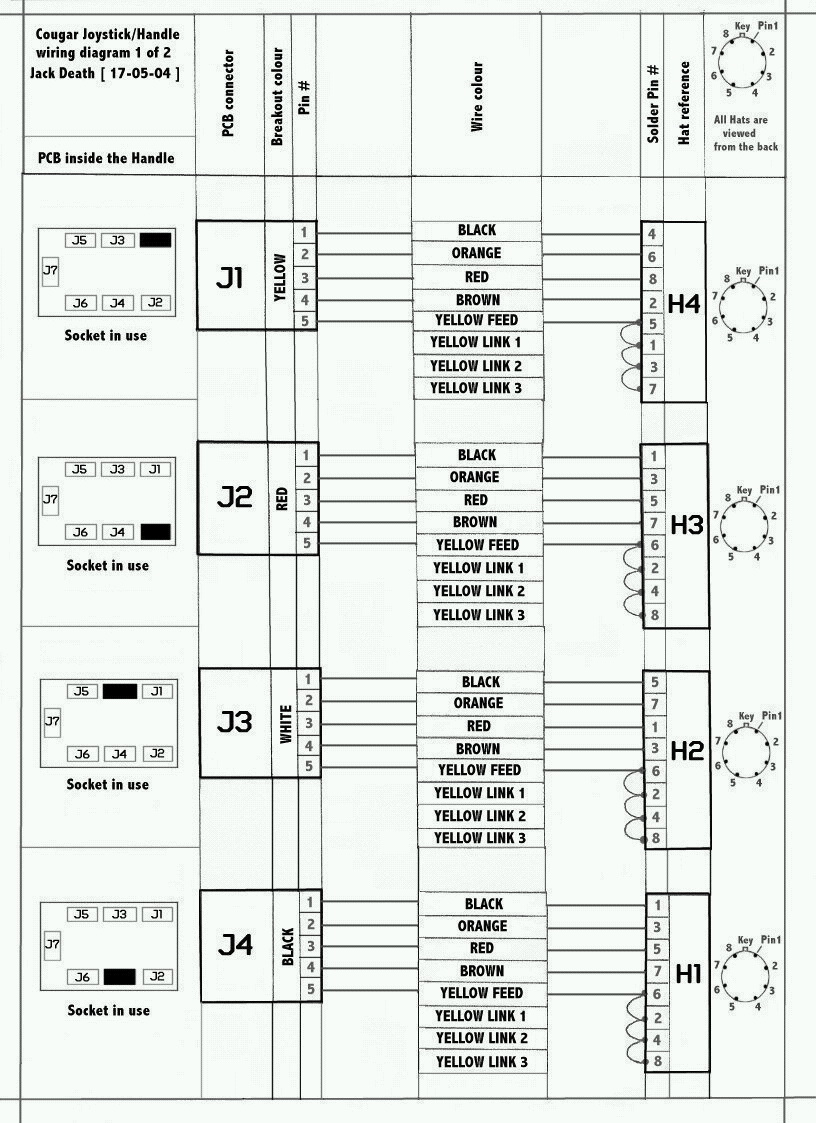

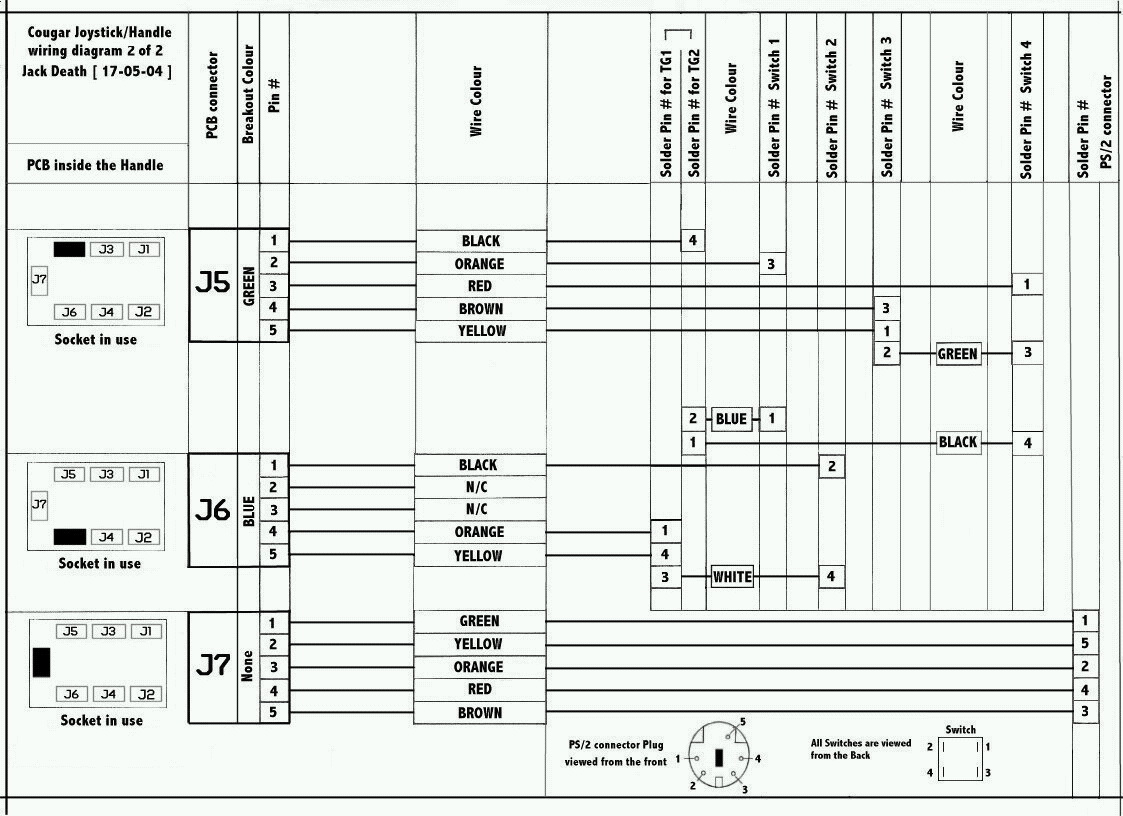

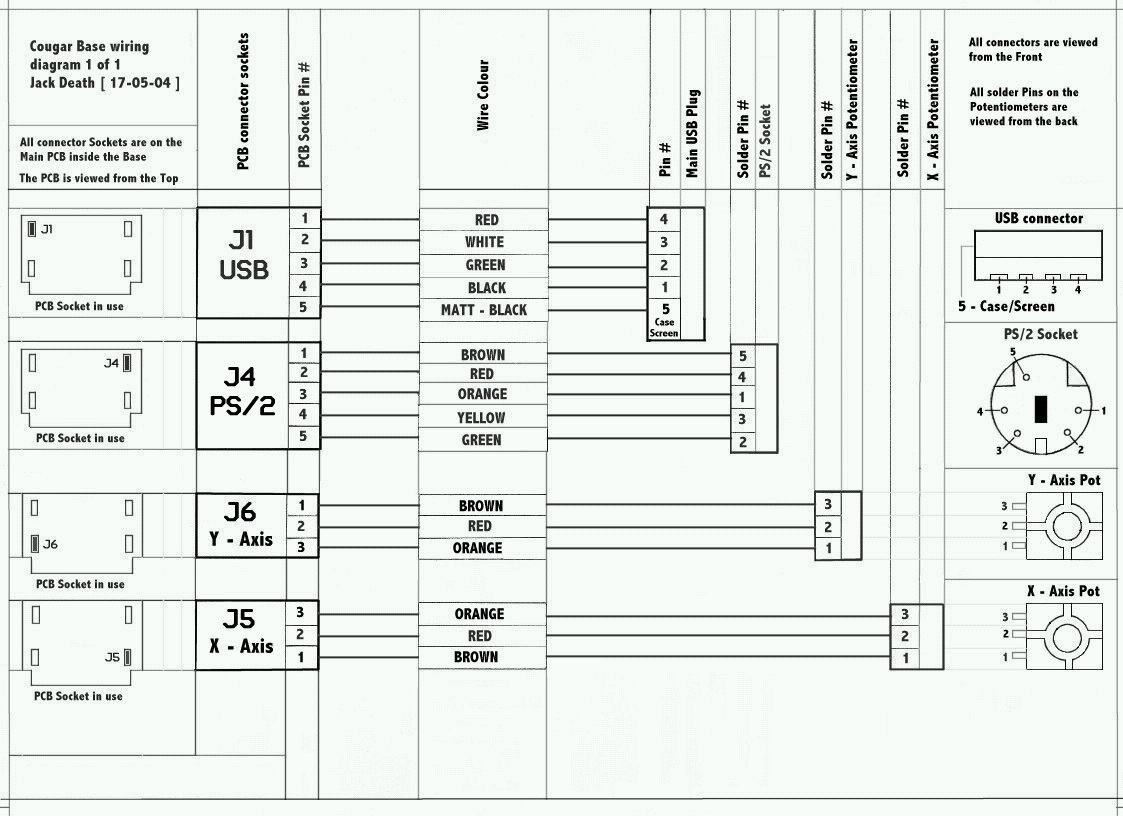

These diagrams were created by Jack Death back in 2004. They are very useful when you need to trace a severed or unsoldered wire.
Click to enlarge
